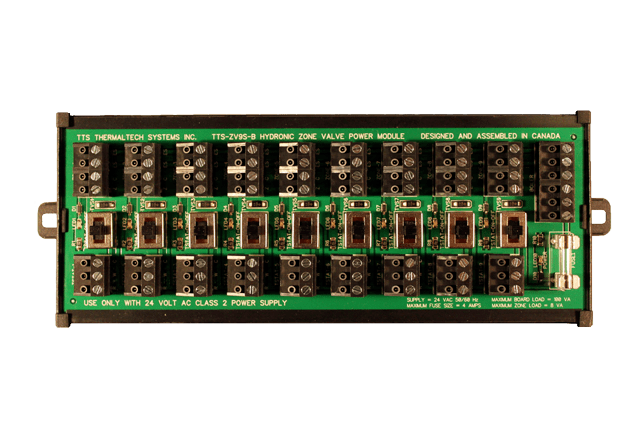

ZV9S Radiant Zone Board
Features and Specifications
The ZV9S zone board greatly simplifies valve wiring, diagnostics, and testing when used in 24VAC hydronic systems where 4 wire zone valves are utilized. 3 wire zone valves are also supported.
Visual indication using LED indicator lamps is provided for both supply power as well as individual zone operation. An easy to use OFF / ON / THERMOSTAT switch for each zone makes testing, maintenance and diagnostics extremely easy.
Features
Specifications
Certifications
Features
- 24VAC LED Power Indicator
- 6 Position Terminal Block for 24VAC Power Supply Connection / Boiler T/T Connection
- 9 x 3 Position Terminal Blocks for Zone Input / Thermostat Connection
- 9 x 4 Position Terminal Blocks for Zone Outputs / Zone Valve Connection
- 9 x LED's for Zone Status Indication
- 9 x 3 Position Switches for both automatic and manual zone control
- Terminal Blocks are user replaceable
- User replaceable fuse (Up to 4A Max.)
- 3 Year Limited Warranty
Specifications
- 24VAC 50/60 Hz. Supply¹
- CLASS II (2) Use Only
- Power Consumption³ : 100ma
- Dimensions : 9.15” x 3.45” x 1.10”
- Valve Connections : 9
- Thermostat Connections : 9
- Power Connections : 2
- TT / Output Connections : 1
- Max Power per zone : 8VA
- Max Power per board : 100VA
- Mounting² : Panel Mount
- IP Rating : None / Open Chassis
- ROHS Compliant : PENDING
- Frame Material : PVC / Nylon
- Terminals : #22 - #14 Gauge
- Fuse : 2 Amp / 4 Amp (Optional) Fast Acting
Certifications
- NEC / CEC Class II. 24VAC Low Voltage, Current Limited.
- Non-Certified
